Active Car Kit for KENWOOD radios TK-290FuG11b.
Usable with batteries KNB-17 and R290.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC632
1x DC Cable \[800023\]
1x Mounting Bracket \[800229\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC632 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Active Car Kit for MOTOROLA radios GP320 bis GP380 and GP680.
Usable with batteries HNN9008A and PMNN4151AR.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.
The WTC631 only works with an HF adapter (available from your radio manufacturer).

**Scope of Delivery**

1x WTC631
1x DC Cable \[800023\]
1x Mounting Bracket \[800179\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC631 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Active Car Kit for MOTOROLA radios GP1200, GP900 and HT1000.
Usable with batteries NTN7143, AL7143CD, H7143RX, H7143Li.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC601
1x DC Cable \[800023\]
1x Mounting Bracket \[800017\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC601 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Active Car Kit for KENWOOD radio TK-2180 and TK-3180.
Usable with batteries KNB-31A, KNB-32N and KNB-33L.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket. For example a to evaluate
which radio channel is currently being used.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC663
1x DC Cable \[800023\]
1x Mounting Bracket \[800420\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC663 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

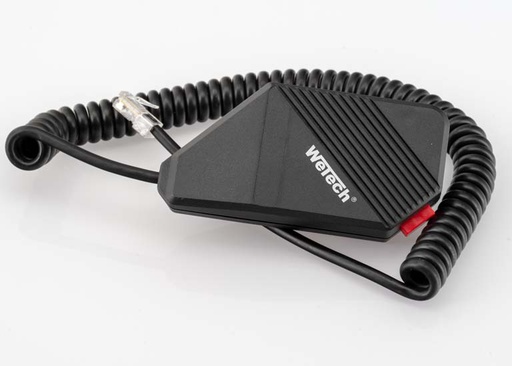

Microphone with speaker MS61 for Wetech Active Car Kits.

**Compatibility**

Suitable for WTC601, WTC606, WTC631, WTC632, WTC635, WTC662, WTC663, WTC664, WTC667 and WTC668.

**Scope of Delivery**

1x MS61 with HV-13 Holder

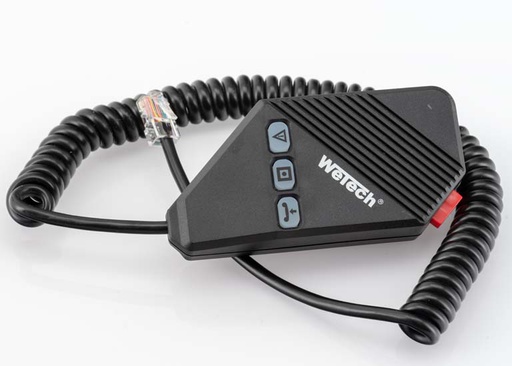

Microphone with speaker MS62 for Wetech Active Car Kits.
**Compatibility**

Suitable for WTC682 and WTC1712.

**Scope of Delivery**

1x MS62 with HV-13 Holder
