Passive Car Kit for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
Usable with batteries FTN6574, FTN4331 and PMNN4351.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

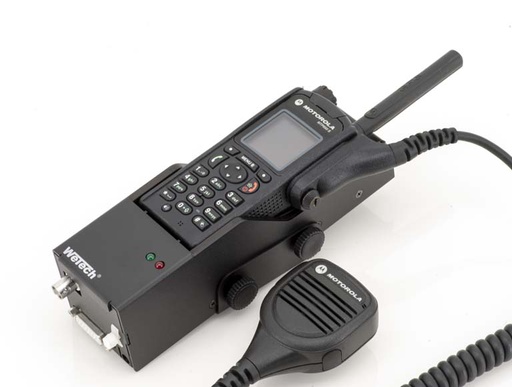

PassivPlus Car Kit for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.
Usable with batteries FTN6574, FTN4331 and PMNN4351.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
In addition, a SUB-D connector is integrated in the WTC676, to which various additional modules can be connected or connections to other devices can be established.
The Pin Assignment can be found at the end of this product page.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

Only usable with belt clip PMLN5616.

The TETRA PEI-interface PEI676 is connected to the SUB-D socket of WTC676 \[600076\] and establishes a connection between an inserted MTP850 and the LARDIS system.
The LARDIS system simplifies everyday life, by simple group changes of the radio, status handling and radio subscriptions (more information at Lardis.de).
Through the interface to the WTC676 you can use all these functions directly in your car.
To do this, the PEI adapter is connected to the WTC676 and connected to the LARDIS display with the connection cable.
As soon as your MTP850 is inserted into the Car kit, it is automatically recognized.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

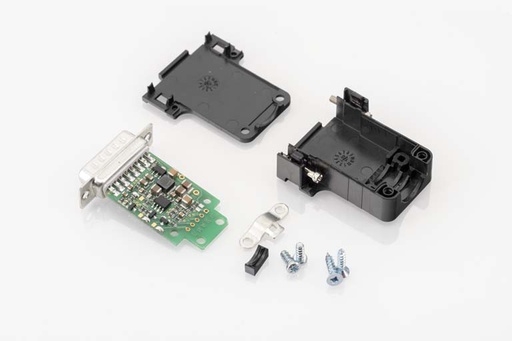

WeTech squelch module SQ676 offers the possibility to connect a MOTOROLA MTP850
(appointed in WTC676 \[600076\]) with a control console Major BOS 2a, 4/8a.

The TETRA PEI-interface PEI676 is connected to the SUB-D socket of WTC676 \[600076\] and establishes a connection between an inserted MTP850 and the PC.
With this connection to the PC this allows to programm the radio directly in the Car Kit.
